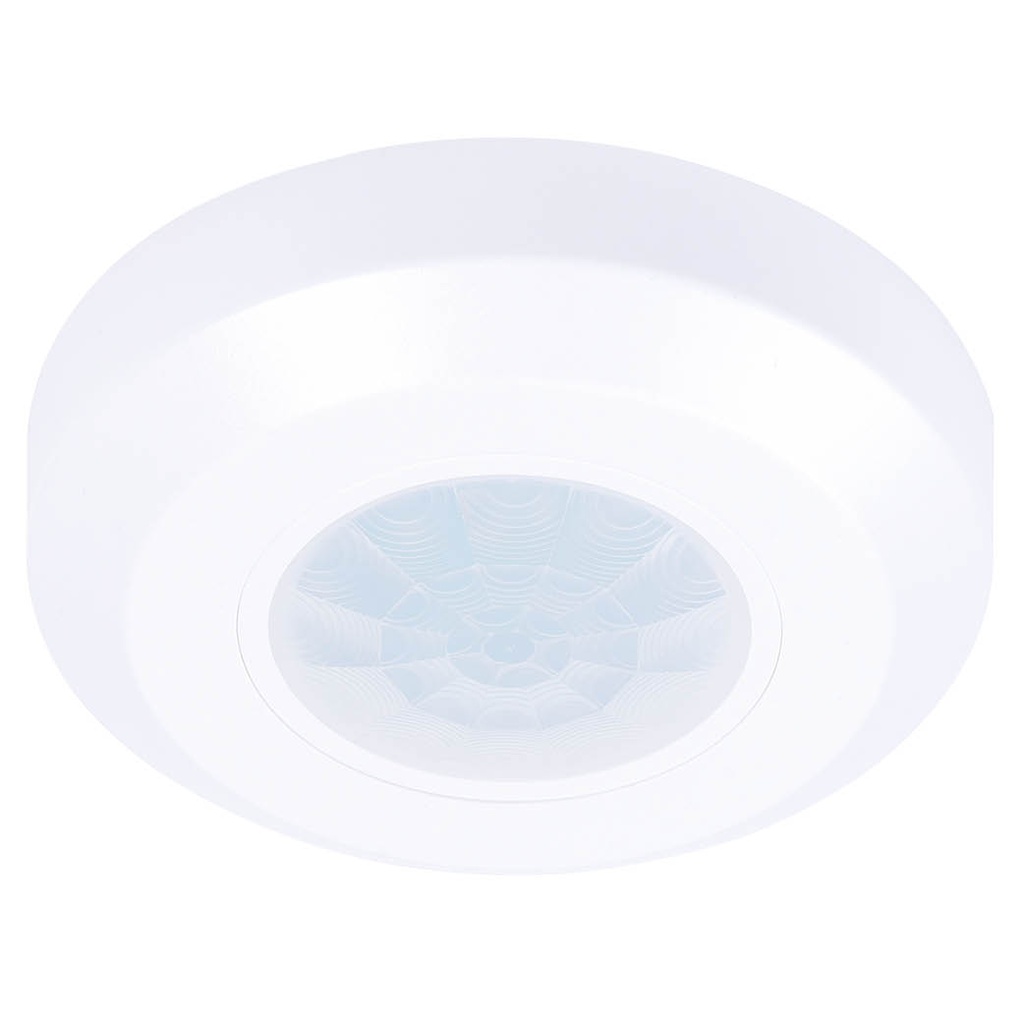

Surface ceiling mount motion detector mini
REF: 104310000
Internal Reference :
104310000Barcode :
8433373039759El detector de movimiento está diseñado para brindar tranquilidad y protección. Tiene un alcance de detección de hasta 8 metros y un ángulo de detección de 360º.
La sensibilidad del umbral de luz natural (3 - 2000 lx) y el tiempo de respuesta pueden ajustarse.
| Main colour | White |
| Diameter (mm) (Ø) | 76 |
| Adjustable detector | Time / Light |
| Maximum operating temperature (ºC) | 40 |
| Minimum operating temperature (ºC) | -20 |
| Type of food | Current |
| Main material | PC |
| Angle of detection (º) | 360 |
| Voltage (V) (Maximum) | 240 |
| Voltage (V) (Minimum) | 220 |
| Ambient light | 3-2000lux (regulable) |
| Type of packaging | Box |
| Stand-by consumption (W) | 0.45 |
| Detector of | Movement |
| Assembly / Installation | Roof |
| Detection radius (max) (M) | 8 |
| Adjustable time | 10seg. ± 3seg. a 15min ± 2min. |
| Installation height (M) (maximum) | 4 |
| Installation height (M) (minimum) | 2.2 |
| Maximum incandescent power | 400 |
| Maximum power low power consumption | 200 |
| Maximum LED power | 200 |
| IP | 20 |
