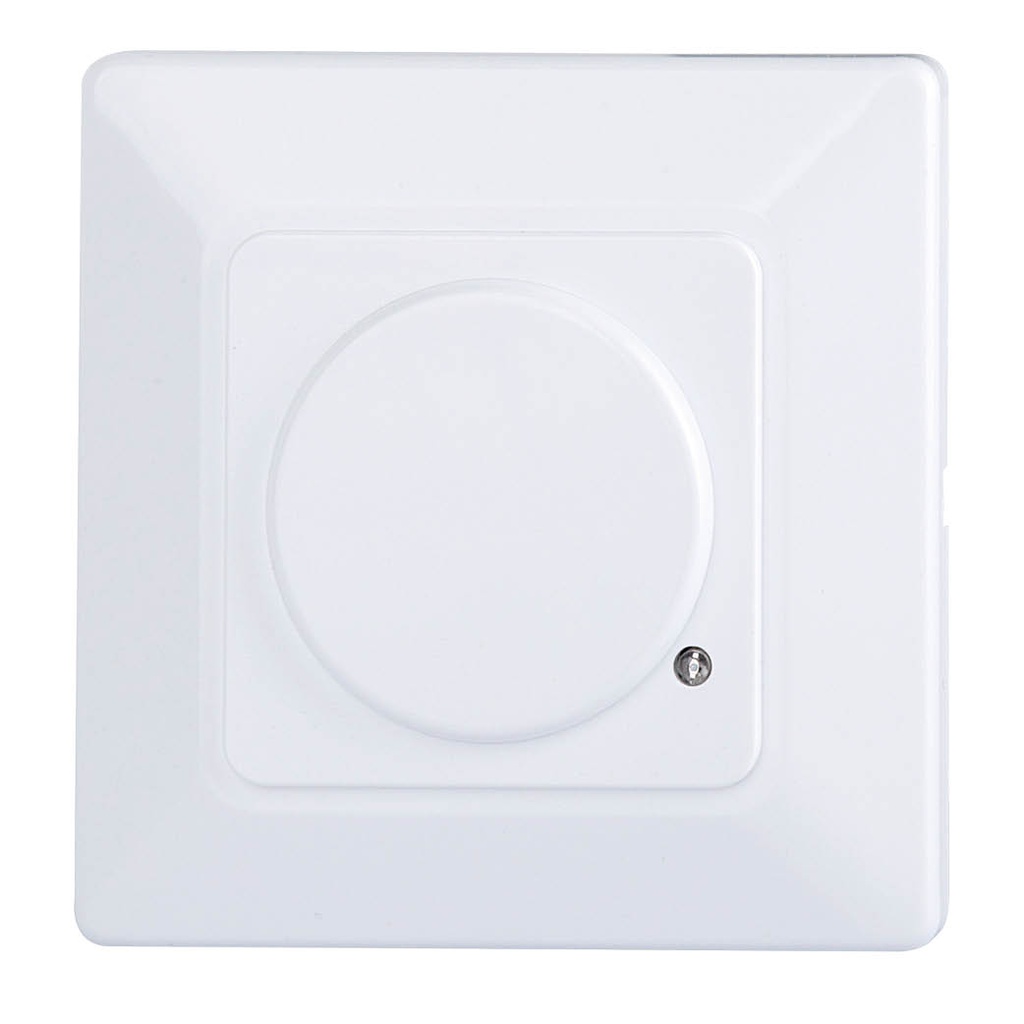

Microwave motion recessed detector 180º 230V
REF: 001401598
Internal Reference :
001401598El detector de movimiento está diseñado para brindar tranquilidad y protección. Tiene un alcance de detección desde 5 metros hasta 15 metros y un ángulo de detección de 180º.
La sensibilidad del umbral de luz natural y el tiempo de respuesta pueden ajustarse.
| Main colour | White |
| Embedding (mm) | 35 |
| Adjustable in: | Tiempo / Luz / Sensibilidad |
| Feeding | Corriente |
| Weight | 0.12 |
| 0600061 | Current |
| Angle of detection (º) | 180 |
| Voltage (V) (Maximum) | 240 |
| Voltage (V) (Minimum) | 220 |
| Ignition time | 10seg. ± 3seg. a 12min ± 1min. |
| Ambient light | 3-2000lux (regulable). |
| Type of packaging | Box |
| Stand-by consumption (W) | 0.45 |
| Installation | Roof |
| Compatible with | LED |
| Detector type | Recessed |
| Maximum operating temperature | 40 |
| Minimum operating temperature | -20 |
| Detector of | Movement |
| Adjustable time | 10seg. ± 3seg. a 12min ± 1min. |
| Installation height (M) (maximum) | 1.8 |
| Installation height (M) (minimum) | 1 |
| Maximum incandescent power | 1200 |
| Maximum power low power consumption | 1000 |
| Maximum LED power | 1000 |
| CW Radar | Sí |
| ISM band | Sí |
| HF system | 5.8 |
